OFF-ROAD WINCHES
FEATURES
SPECIFICATIONS
SPECIFICATIONS
MASSIVE PULLING POWER
A 6.0 HP series wound motor delivers massive pulling capacity to recover your stuck vehicle.
FASTER & STRONGER
Geared lower with a ratio of 177:1 and equipped with a 3 stage planetary gear system, this winch is designed for stronger and faster winching.
SUPERIOR DURABILITY
Made of heavy-duty steel with powder coating, this electric winch is rust and corrosion resistant and ideal for complex situations.
UPGRADED ROPE
The synthetic rope (9.5MM X 24M) boasts an amazing breaking strength of 23,809 LBS that won’t fray or break.
POWERFUL BRAKING
The brake has been upgraded and does an excellent job of keeping a solid grip of the rope, and allows you manually spool the synthetic rope.
COPPER CORE TERMINAL
This design can effective keep oxidation, corrosion and rust at bay, and features superior conductivity.
MENACING EXTERIOR

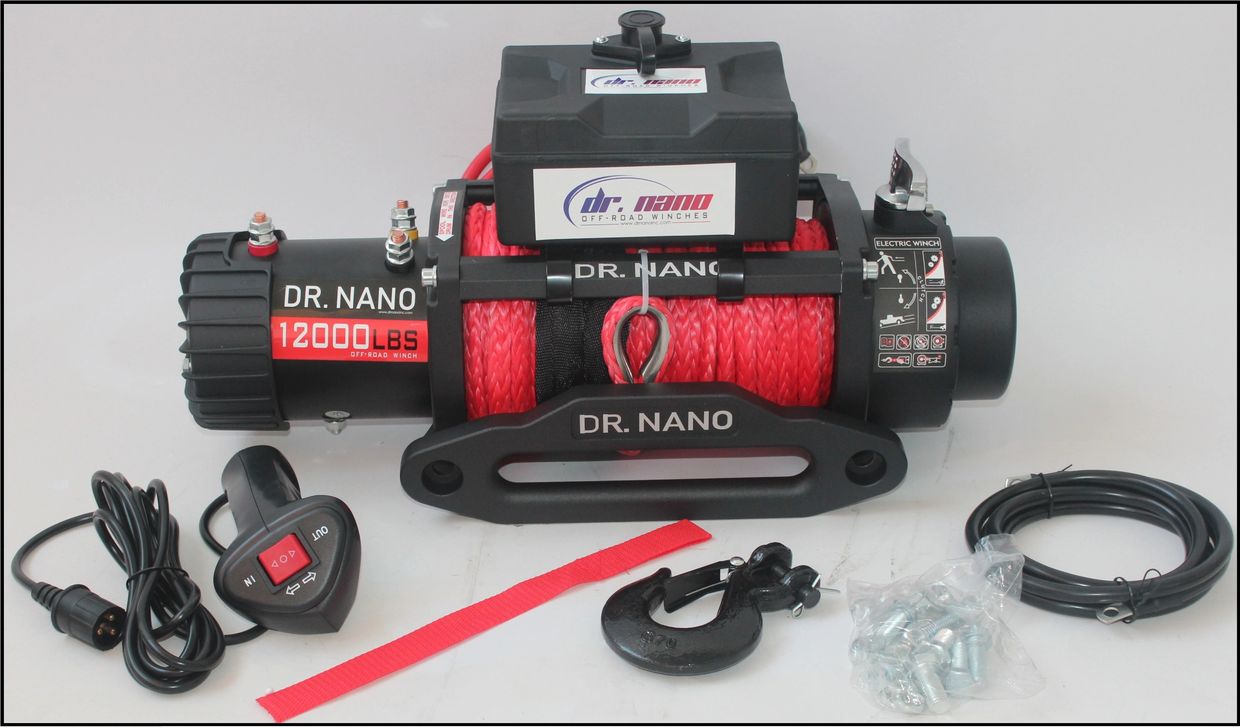

This DR. NANO off-road electric winch is matte black textured, giving it a true menacing and blackout look.
SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
- Available sizes ->
8,000 LBS
12,000 LBS
14,000 LBS
- Controls: Wired & wireless control
- Gear Train: 3-Stage Planetary
- Motor: 6.0HP /4.5KW series Wound
- Gear Rotation: 177:1
- Brake: Automatic load-holding brake
- Synthetic / Steel Rope: 9.5MM x 24M
- Remote Control: Included
- Fairlead: Aluminium Alloy Hawse Fairlead
- Remote Control Battery Type: 12V 23A Alkaline
- Recommended Car Battery: 12V above 85A
- Winch Dimension: 535 x 162 x 170MM
- Weight: APPROX. 24 KGS
- 1 Year Warranty
