OFF-ROAD WINCHES

Equipped with a 6.0 HP series wound motor, a 3-stage planetary gear system and made of heavy-duty steel with powder coating that is rust and corrosion resistant, this DR. NANO off-road electric winch not only provides a massive pulling capacity of 12,000LBS that will help pull your 4x4, Jeep, SUV and pickup truck out of sand, mud, soil but also delivers faster line speed under load with lower amp draw. The multifunctional controller, which integrates both wired and wireless control with easy plug & play installation that makes operation easier to help you out of predicament, also has a built-in LED light for night time use. And this winch is also sealed to withstand the intrusion of rain and moisture, ensuring long last functionality.

MASSIVE PULLING POWER

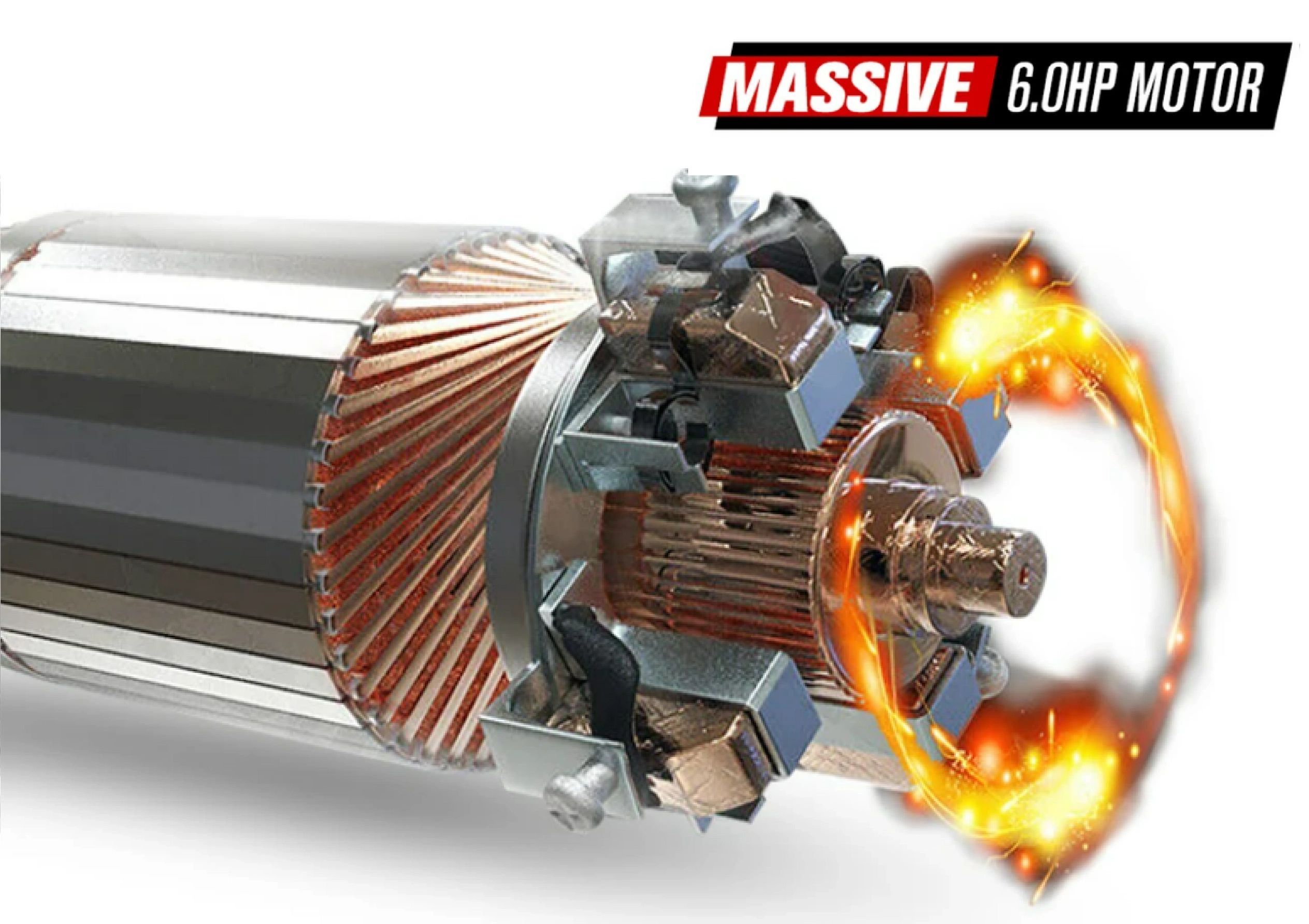

A 6.0 HP series wound motor delivers massive pulling capacity of 12,000 LBS to recover your stuck 4x4, and SUV etc

FASTER & STRONGER

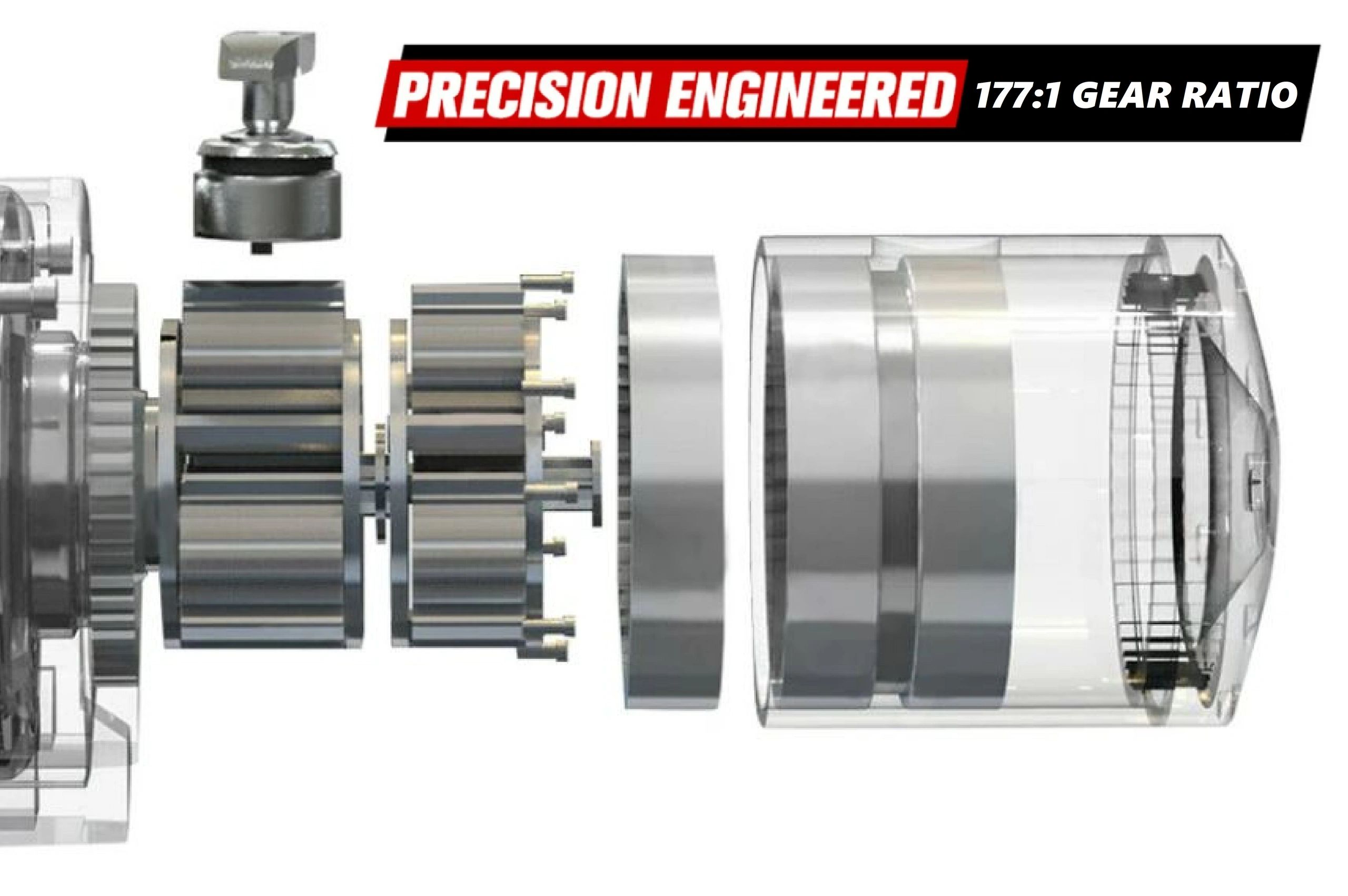

Geared lower with a ratio of 177:1 and equipped with a 3 stage planetary gear system, this winch is designed for stronger and faster winching.

MULTIFUNCTIONAL REMOTE CONTROL

The controller that integrates both wired and wireless control (up to 30m) is 100% plug & play with a built-in LED light.

SUPERIOR DURABILITY

Made of heavy-duty steel with powder coating, this electric winch is rust and corrosion resistant and ideal for complex situations.

UPGRADED ROPE

The synthetic rope (9.5MM X 24M) boasts an amazing breaking strength of 23,809 LBS that won’t fray or break.

WATER-RESIST CONSTRUCTION

All sensitive parts, including motor and solenoid, are fully sealed to prevent water damage.

POWERFUL BRAKING

The brake has been upgraded and does an excellent job of keeping a solid grip of the rope, and allows you manually spool the synthetic rope.

COPPER CORE TERMINAL

This design can effective keep oxidation, corrosion and rust at bay, and features superior conductivity.

MENACING EXTERIOR

This DR. NANO off-road electric winch is matte black textured, giving it a true menacing and blackout look.

WARRANTY

Electric Components: 1 Year

Mechanical Components: 1 Year

SPECIFICATIONS

Single line rated pull: 12,000 LBS (5443 KGS)
Controls: Wired & wireless control
Gear Train: 3-Stage Planetary
Motor: 6.0HP /4.5KW series Wound
Gear Rotation: 177:1
Brake: Automatic load-holding brake
Synthetic / Steel Rope: 9.5MM x 24M
Remote Control: Included
Fairlead: Aluminium Alloy Hawse Fairlead
Remote Control Battery Type: 12V 23A Alkaline
Recommended Car Battery: 12V above 85A
Winch Dimension: 535 x 162 x 170MM
Weight: 24 KGS

OFF-ROAD WINCHES

DR. NANO 12000 LBS SYNTHETIC ROPE OFF-ROAD WINCH

12 volt series wound motor provides increased power and winching efficiency.

Each winch is equipped with a motor housing breather, 2 metre nylon air hose and filter for increased water protection.

Our rotate style clutch handle allows much easier clutch operation and reduces the winches overall height.

Strengthened single piece gearbox casing is much smaller, stronger and also includes 304 grade stainless steel cross rods.

Fully sealed solenoid for extreme durability, housed in a heavy duty control box.
